% Find_Epi.m

% By Dan Gareau, December 2014, www.dangareau.net
% this program finds the epidermis in images of histology for either H&E or
% immuno-stained specimens.

% To use this program, place it in a folder containing a subfolder "Data"
% that contains one or more images you wish to quantify.
% Specify the user input variables below and un-comment the appropriate
% image type (line 28, 29 or 30).  Then run the code.

% if the program doesn't work and doesn't give you an error in the
% matlab command window, try commenting out lines 46, 186 and 187

clear all
close all
targetDIR = 'Data';

User Input Variables

goose = 1.0;  % increase this if the staining is light
Pix2um = 0.82; % scale factor microns per pixel
StainType = 1;  % 0 for H&E, 1 for brown immunostains

statement = ['cd ' targetDIR];
eval(statement)

imsDIR = dir('*.TIF');
% imsDIR = dir('*.BMP');
% imsDIR = dir('*.JPG');
nIMS = length(imsDIR);
holes = 0;

if ~isdir('OutPut')
    mkdir('OutPut')
end

cd OutPut
d = {'Data Name','Mean Epi Thickness','SD Epi Thickness'};
xlswrite('OutPut.xls', d, 1, 'A1')
cd ..

cycle through all images to find epidermis

for i_im = 1:nIMS
    try
        tic
        disp(sprintf('Now Crunching %4.0f of %4.0f',i_im,nIMS))
        current_name = imsDIR(i_im).name;
        clear I Ny Nx Nz blue green red threshold bw bw2 bw3 bw4 bw5 bw6 B L stats bw7 bw8 val Y_crd y_coords
        I = double(imread(current_name));
        [Ny Nx Nz] = size(I);
        blue = zeros(Ny,Nx);  % initialize
        green = zeros(Ny,Nx);  % initialize
        red = zeros(Ny,Nx);  % initialize
        blue = I(:,:,1);
        green = I(:,:,2);
        red = I(:,:,3);
        threshold = graythresh(green/max(max(green)));
        bw = im2bw(green/max(max(green)), threshold*goose);
        if StainType
            ratioRED = red./blue;
            threshold = graythresh(ratioRED/max(max(ratioRED)))*goose;
            bw = im2bw(ratioRED/max(max(ratioRED)), threshold);
        end

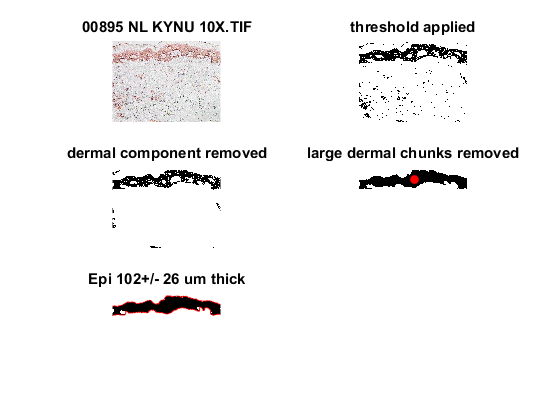

        figure(1);clf
        subplot(3,2,1)
        imagesc(I/max(max(max(I))))
        title(current_name)
        axis equal image
        axis off

        subplot(3,2,2)
        imagesc(bw);
        colormap gray
        axis equal image
        axis off
        title('threshold applied')

        bw2 = imfill(bw,'holes');

        subplot(3,2,3)
        imagesc(bw2);
        hold on
        axis equal image
        axis off
        title('dermal component removed')

        bw3 = 1-bw2;

        bw4 = imfill(bw3,'holes');
        seD = strel('diamond',1);
        bw5 = imerode(bw4,seD);
        bw6 = bwareaopen(bw5,5000);

        % find segments
        [B, L] = bwboundaries(bw6,'nohole');
        stats = regionprops(L,'Centroid','PixelList');
        bw7 = 1-bw6;

        subplot(3,2,4)
        imagesc(bw7);
        hold on
        axis equal image
        axis off

        bw8 = bw7;
        for iCTR = 1:length(stats)
            y_coords(iCTR) = stats(iCTR).Centroid(2);
            plot(stats(iCTR).Centroid(1),stats(iCTR).Centroid(2),'ro','markerfacecolor','r')
        end

        [val Y_crd] = min(y_coords);

        for iCTR = 1:length(stats)
            if stats(iCTR).Centroid(2) > 1.4* stats(Y_crd).Centroid(2)
                cor_coords = stats(iCTR).PixelList;
                for i_corect = 1:length(cor_coords)
                    bw8(cor_coords(i_corect,2),cor_coords(i_corect,1)) = 1;
                end
            end

        end
        title('large dermal chunks removed')
        axis equal image
        axis off
        drawnow

        subplot(3,2,5)
        imagesc(bw8);
        hold on
        axis equal image
        axis off
        ind_epi = 0; % initialize

        for ix = 1:Nx
            iy = 1;
            while bw8(iy,ix) > 0
                iy = iy + 1;
                if iy == Ny
                    bw8(iy,ix) = 0;
                end
            end
            top(ix) = iy;
            iy = Ny;

            while bw8(iy,ix) > 0
                iy = iy - 1;
                if iy == 1
                    bw8(iy,ix) = 0;
                end
            end
            bottom(ix) = iy;

            if bottom(ix) ~= top(ix)
                ind_epi = ind_epi+1;

                count_white = 0;
                iy = top(ix);
                while iy < bottom(ix)
                    iy = iy + 1;
                    if bw8(iy,ix) == 1
                        count_white = count_white + 1;
                    end
                end
                true_thick(ind_epi) = bottom(ind_epi) - top(ind_epi) - count_white;
            end

        end
        plot([1:Nx],top,'r-')
        plot([1:Nx],bottom,'r-')
        epithick = bottom - top;
        title(sprintf('Epi %3.0f+/-%3.0f um thick',mean(true_thick)*Pix2um,std(true_thick)*Pix2um))
        name = sprintf(['Out_Put', current_name]);
        if ~isdir('OutPut')
            mkdir('OutPut')
        end
        cd OutPut
        print(figure(1),'-dtiff','-r600',name);
        clear d
        d = {current_name, mean(true_thick)*Pix2um, std(true_thick)*Pix2um};
        xlswrite('OutPut.xls', d, 1, sprintf('A%1.0f',i_im+1))
        cd ..
        toc
    catch
    end
end

Now Crunching    1 of    2
Elapsed time is 9.498498 seconds.
Now Crunching    2 of    2
Elapsed time is 8.778257 seconds.

Published with MATLAB® R2014b
